INTERMATIC T101

07827500001

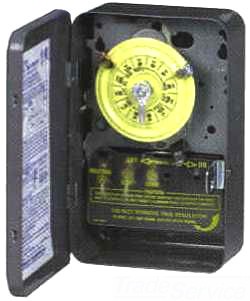

40A 125V Heavy Duty Mechanical Time Switch Intermatic T101

Intermatic 40A 125V Heavy Duty Mechanical Time Switch

Specifications:
Enclosure: Type 1 Indoor Steel
Knockouts: Combination 1/2"- 3/4" nominal knockouts, one on back and on each side, and two on bottom
Switch: SPST
Clock Motor Volts 60 Hz: 125
Amps: 40
HP Rating: 2
Switch Rating: Each Pole, 40 Amp Resistive, 120-480 VAC, 40 Amp Tungsten, Inductive or 1000 VA Pilot Duty, 120-277 VAC, 2 HP (24 FLA) 120 VAC, 5 HP (28 FLA) 240 VAC single-phase
Power Input: 3 W Maximum
Operating Temperature: -40°F to 130°F (-40°C to 54°C)
Warranty: Limited 1 year

Ratings:
CSA Certified

Description:
The heavy duty mechanical time switch is designed for industrial, commercial and residential applications. Features a high horsepower rating that is ideal for loads up to 40 amps resistive from 125-volts and direct 24-hour time switch control of most loads. Manual override. All models are equipped with one "ON" and one "OFF" tripper. The unit contains a 1-circuit standard On/Off Single Pole Single Throw 40 Amps, 4000 watt capacity, 125 volts.
