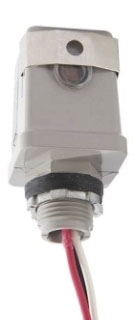

INTERMATIC K4123C

07827502959

208-277V 3100-4150W Thermal Photo Control, Stem Mounting Intermatic K4123C

Intermatic 208-277V 3100-4150W Thermal Photo Control, Stem Mounting

Specifications:
Watts Tungsten: 3100-4150
VA Ballast: 1700-2300
Amps Tungsten: 15
Amps Ballast: 8.3
Volts AC: 208-277
Size: 1 9/16" (4.0 cm) square, 3" (7.6 cm) long
Color: Gray
Activation: 1-5 FC ON; 3-15 FC OFF, (phote eye clear on models with shield)
Power Consumption: Averages under 1 Watt
Operating Temperature: -40°F to 158°F (-40°C to 70°C)

Ratings:
C/UL Listed, CSA Listed, California Title 24 Compliant

Description:
The K4100 Series Photo Controls feature stem mounting, thermal-type, controls with single and multi-voltage models. Thermal-type photo controls provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching OFF due to car headlights, and lighting. The thermal-type controls feature a cadmium sulfide photocell and a sonic-welded polycarbonate case and lens to seal out moisture. The design utilizes a dual temperature compensating bimetal and composite resistor for reliable long life operation over ambient temperature extremes. 6" leads. Controls come with a washer gasket and locking nut.
