Hubbell HBL7410BG

78358533354

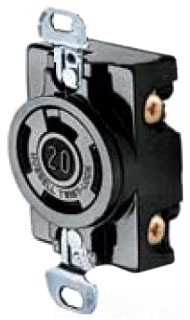

Twist-Lock Receptacle, 3P4W, 20A 250V AC, Non-NEMA, Black Urea Face Hubbell HBL7410BG

Hubbell Twist-Lock Receptacle, 3P4W, 20A 250V AC, Non-NEMA, Black Urea Face

Specs:
Product Item Single Receptacle
Wiring Scheme 3-Pole, 4-Wire Grounding
Multi-Rating 20A, 250V
Item Style Standard
Device Color Black

Terminal Clamp Material .062" (1.6) Steel -Tin plate
Terminal Screw Material #8-32 Bronze (White finish on neutral screw when used)
Ground Screw Material #8-32 Bronze (Green)
Contact Spring Material .040" Brass
Mounting Screw Material Steel-zinc-plated
Cover (Top) Material Black Nylon
Base Material Nylon Polyester
Ground Contact Material .040" Brass
Bridge (Mounting Strap) Material .050" Brass
Back Plate Material .040" Brass
Rivet Material Brass
Auto Ground Clip Material Stainless Steel
Ratings Molded In or Stamped On
Catalog No Permanently ink marked on product
Dielectric Voltage Withstand 2,000V minimum

Current Interrupting Certified for current interrupting at full rated current
Temperature Rise Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation 20A #12 AWG
Terminal Identification Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Operating Temperatures Maximum Continuous 75 C Minimum -40 C (w/o impact)

Ratings:
Flammability UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
