Mersen SFRU

78200124446

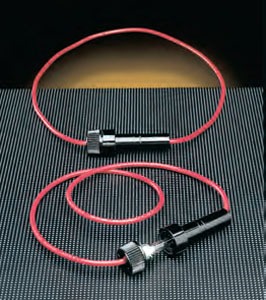

32V 20A IN-LINE Fuseholder Mersen SFRU

Mersen Universal In-Line Fuseholder

Specs:
Volts (VAC) 32
Volts (VDC) 32
Ampere (A) 20
Ampere (A) 20
Speed / Characteristic Includes FSFE Fast-Acting Fuse
Mounting Wire
Connection Terminal Type Bare Wire Termination
Body Style Cylindrical
Body Material Thermoplastic
Materials Contact Brass
Minimum Operating & Storage Temp °C -40
Enclosure NA
Number of Poles 1

Ratings:
SAE J554

Description:

Universal In-Line Fuseholder supplied with 15" loop of #14AWGT red vinyl insulated wire frame and three springs in different lengths to accommodate FSFE size fuse. Molded body and knob are Black Thermoset (UL 94V0). Body and knob have .20" diameter hole for insulated wire. Knob is bayonet-lock type metal insert. Ambient temperature is -40 degrees C to +125 degrees C. Contact rivets are tin-plated brass designed for use with #14 AWG stranded wire Includes fuse listed and 19" loop of #14 AWG red insulated wire. Application 32V Automotive & Electronic Circuits. Mersen (also known as Ferraz Shawmut and Gould Fuses).
