Mersen 60323

78200175778

600V 30A Class H/K Fuse Block 3Pole Mersen 60323

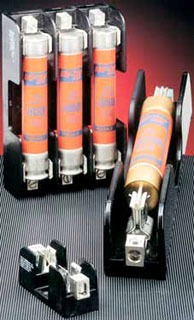

Mersen Class H/K 600V Fuseholder

Specs:
Volts (VAC) 600
Volts (VDC) 600
Ampere (A) 30
Class Class H, K
Mounting Screw Mount, Screw Mount Or DIN-rail
Connection Terminal Type Box, Screw, Pressure Plate, Stud, Box Side-Clip, Box In-Line Clip
Body Material GFPC, Phenolic
Materials Contact Tin-plated Copper
Minimum Operating & Storage Temp °C -25
Wiring Range Al/Cu #2-14, Cu #10-14, Cu #4-14, Cu 2/0-#12, 1/4-20, Al/Cu 2/0-#6, Al/Cu 350kcmil-#6, Cu 350kcmil-#6, Al/Cu 1000-250kcmil, Al/Cu (2) 350kcmil-#4, Cu 1000-250kcmil, Cu (2) 350kcmil-#6, Al/Cu (2) 500kcmil-#4, Cu (2) 500kcmil-#4
Number of Poles 3

Ratings:
UL Listed to standard 4248-6 (Class H) and 4248-9 (Class K), File E52283, CSA Certified C22.2, Class 6225, File 32169

Description:

Mersen class H and K fuseholders accommodate all class H and K power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60, 100 and 200A fuseholders feature a unique adder block to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper. Mersen (also known as Ferraz Shawmut and Gould Fuses).
