Mersen 60308SJ

78200167251

600V 30A 3Pole Fuse Block J Class Mersen 60308SJ

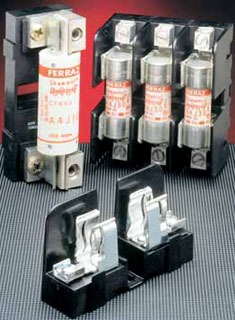

Mersen Class J Fuse Block

Specs:
Volts (VAC) 600
Volts (VDC) 600
Ampere (A) 30
Class Class J
Mounting Screw Mount Or DIN-rail,
Connection Terminal Type Box, Screw, Pressure Plate, Box Side-Clip
Body Material GFPC
Materials Contact Tin-plated Copper
Minimum Operating & Storage Temp °C -25
Wiring Range #2-14 Al/Cu #4-14 Cu #2-14 Cu 2/0-#6 Al/Cu
Number of Poles 1, 2, 3

Ratings:
UL Listed to standard 4248-8, File E52283 CSA Certified C22.2, Class 6225, File 32169

Description:

Mersen open style class J fuse blocks accommodate all class J fuses ranging from 0-600A, 600V. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. SJ fuse blocks are more compact than the traditional offering and feature a unique adder block configuration for multi-pole field assembly. All fuse clips are made of high conductivity tin-plated copper, with a choice of spring reinforced or non-spring reinforced clips. Mersen (also known as Ferraz Shawmut and Gould Fuses).
