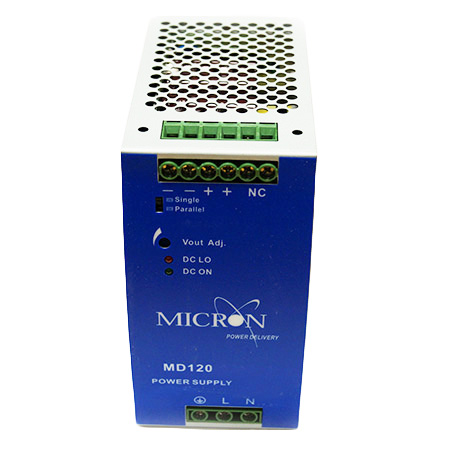

Micron MD120-24A-1C
00540000411
24V 120 W Power Supply DIN Rail Mount
|
| Micron MD120-24A-1C |
| 00540000411 |
|
|
Din Rail Mount Power Supply, Micron MD12024A1C
Specs:
Output Power in Watts: 120
Output Voltage Volts DC: 24
Voltage Adjustable Range: 22.5-28.5
Output Current in Amps: 5.33-4.21
Peak Current in Amps: 6.85
Input Voltage AC: 90-264
Input Voltage DC: 90-375
Size WxDxH (mm): 63.5x126x125
Case Construction: Metal
Micron's DINergy family of small form DIN rail mounting power supplies provide valuable features and benefits at an economical price point. Robust, heat dissipating construction, 60° C ambient operating rating (no derating necessary), and high quality electronic components provide long life backed by Micron's 3 year warranty for dependable control power in process automation and other control applications. Micron's automatic input voltage matching circuitry senses and adjusts the product to accommodate any input voltage from 100-240VAC without the need for switch actuation. Unlike many competitive product designs employing passive choke filters, DINergy units feature active PFC systems that provide superior harmonic filtering.
Features:
85-264VAC wide-range auto select input
Compact size, high efficiency and DIN Rail mounting
Units listed for UL1604 Cl1 Div 2 hazardous locations
Active PFC meets EN61000-3-2
Overcurrent, shortcircuit, overvoltage and overheat protection
DC OK LED and active output terminal for remote status check
Power boost available for start up load demand
Parallel operation (increase output power or redundant operation)
UL508, UL60950 and IE C60950
EMI meets FCC15 B, EN55022 B and CISPR22 B
High reliability, MTBF>200,000 hrs
3 year warranty
Spec Sheet
|
|
