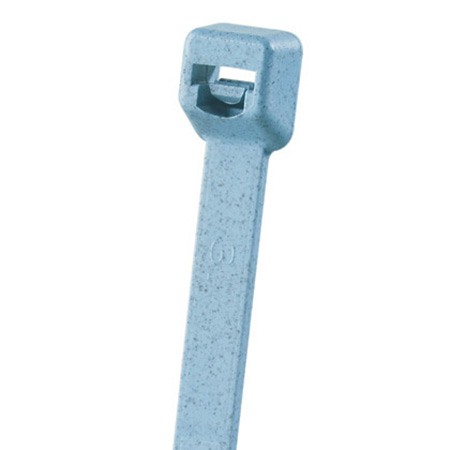

Panduit PLT1M-C86
07498302995K
Cable Tie, 3.9"L (100mm), Metal Detectable Nylon, Miniature cross section, Light Blue
|
Panduit PLT1M-C86 |
07498302995K |
|
Cable Tie, 3.9", metal detectable nylon standard cross section, Panduit PLT1MC86
Specs:
Material: Metal Impregnated Nylon 6.6
Color: Light Blue
Width (In.): 0.098
Width (mm): 2.5
Length (mm): 100
Length (In.): 3.9
Thickness (mm): 1.1
Thickness (In.): .044
Min. Loop Tensile Strength (N): 80
Min. Loop Tensile Strength (Lbs.): 18
Min. Bundle Diameter (mm): 3.3
Min. Bundle Diameter (In.): 0.13
Max. Bundle Diameter (mm): 22
Max. Bundle Diameter (In.): 0.87
Max. Continuous Use Temperature: 185°F (85°C)
Ratings:
RoHS compliant
Description:
Cable Tie, 3.9"L (100mm), Miniature metal detectable nylon cross section. Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
Part Drawing
Catalog Page
|
|
