Roxtec CF 16/10

Roxtec CF 16/10

10 Cable Gland Frame/Kit, Roxtec CF 16/10
Price: $109.45
In stock
Product Detail
Roxtec CF 16/10
Manufacturer: ROXTE

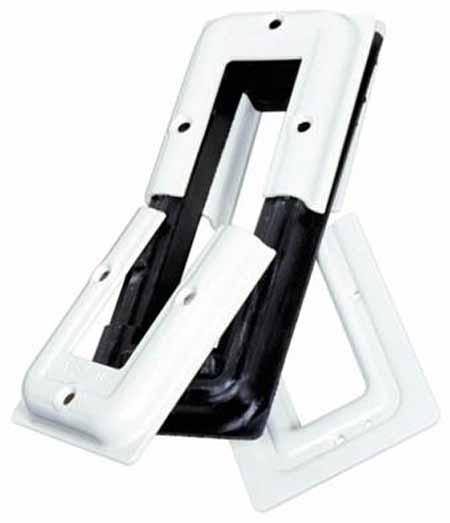

Roxtec CF 16/10 Cable Gland Frame/Kit

Number of cables/pipes: 10
Diameter range and number of cables/pipes:
      3.5-16.5mm, 0.138-0.650in - 8 Cables/pipes
      9.5-32.5mm, 0.374-1.280in - 2 cables/pipes
Material: Powder coated mild steel
External Dimension (HxW): 234 x 93mm, 9.213 x 3.661in

Standardized Kit solutions are based on CF 16 compact frame. The CF 16 frame has a very low profile and is suitable for enclosures where many cables need to be routed in areas with limited space. The CF 16 frame has integrated compression.

UL/NEMA 4, 4X, 12, 13, CSA Certified, IP 66/67

Data Sheet

Installation Instructions

UL E209828 Certification

UL Classification 12, 12K Certification

CSA 1333944 Certification

CSA 1333944 Supplementary Documentation

PDF Drawing

MSDS Sheet
