Rittal 1310600
00540000177

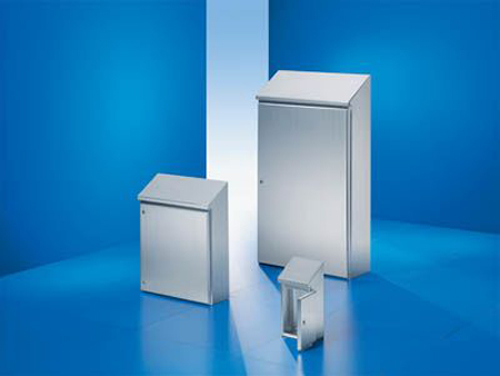

AE Hygienic Design Enclosure, Single Door, 25.59”Hx24.02”Wx8.27”D
|
| Rittal 1310600 |
| 00540000177 |
|
|
Description:
One-piece enclosure body, 30 Degree sloped roof overhangs front door, right hand hinged, with internal hinges, removable blue silicone gasket between the door and body, 1/4-Turn latch(es) with hygienic lock inserts, Zinc-plated mounting panel
Hygienic design enclosures are designed to meet the washdown demands of the food and beverage industry.
Material:
Door and body: Stainless steel, Type 304 (1.4301), 16 ga?
Lock inserts: Stainless steel, Type 316 (1.4404)?
Mouting Panel: Zinc-plated sheet steel
Specs:
Surface Finish: Door and body: Brushed, 400 grain, peak-to-valley height of grain <0.8 micro meters
Protection Category: IP 66 to IEC 60 529, IP 69K to DIN 40 050-9, Gasket seal conforms to FDA Guideline 21 CFR 177.2600
Assembly & Operating Instructions
CAD File
Technical Information
Data Sheet
|
|
